SS 316L Johnson Wedge Wire Lateral Pipe Assemblies DN32 219mm

Description
Name: DN32-219mm Stainless Steel 316L Johnson Wedge Wire Lateral Pipe Assemblies Slot: 0.05-3mm
V Wire: 1.5x2mm End Connection: Welded Ring, Threaded API, PT, NPT,BST, Flange, Etc
Support Wire: 1.8x2.5mm, Or Customized Material: SS304, Or 316L, 321, Duplex Stainless Steel, Hastelloy
Advantage: No Magnetic, Easy For Installation, Long Using Life Application: Filter, Filter, Mineral, Gas/oil/liquid Filtration, Industry
High Light:

Wedge Wire Lateral Pipe Assemblies

,

SS 316L Lateral Pipe Assemblies

,

219mm Lateral Pipe Assemblies

DN32-219mm Stainless Steel 316L Johnson Wedge Wire Lateral pipe Assemblies



Water Distributor, also called Lateral Water Distributor, is to arrange the water volume according to a certain rule in a certain working area. The most common is to distribute water evenly on the working surface.



Product Details: Johnson Wedge Wire lateral Pipe

Water Distributor is to arrange the water volume according to a certain rule in a certain working area. The most common is to distribute water evenly on the working surface. The device that accomplishes this task is called a water distributor. The conventional material is 304 stainless steel, which can also be customized to 316 stainless steel. The 316 material can be used in the corrosive filter equipment to prevent water corrosion. Usually used in mechanical filtration equipment, activated carbon filtration equipment, softened water treatment equipment, demineralized equipment. It can also be applied to various valveless filter tanks, filter tank bottom filter, etc.



Wedge wire lateral assemblies, also called header lateral assemblies, are assemblies of horizontal herring bone style wedge wire screen laterals and vertical secured round hub. The screen lateral has an inherent even pattern, which is made of stainless steel, Hastelloy alloy steel, and other alloy steels.



Wedge wire lateral assemblies are made of several wedge wire screen laterals and supporting round hub. There is thread ending and flange ending wedge wire screen laterals for choice to suit different machines.

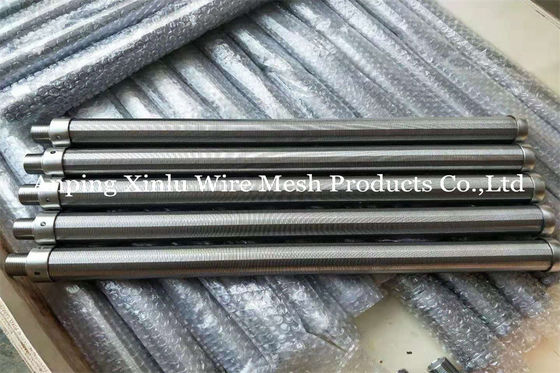

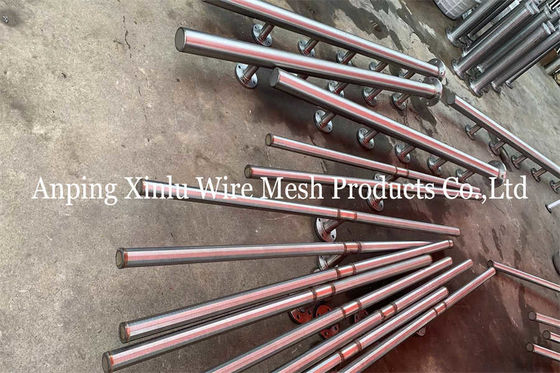

SS 316L Johnson Wedge Wire Lateral Pipe Assemblies DN32 219mm 0

Because of the different lateral endings, the connection types of lateral assemblies are also different including thread connection and flange connection. Featured by the different designs, wedge wire lateral assemblies are widely used in under draining applications for filtering. Besides, it also can be used in various machines for screening.

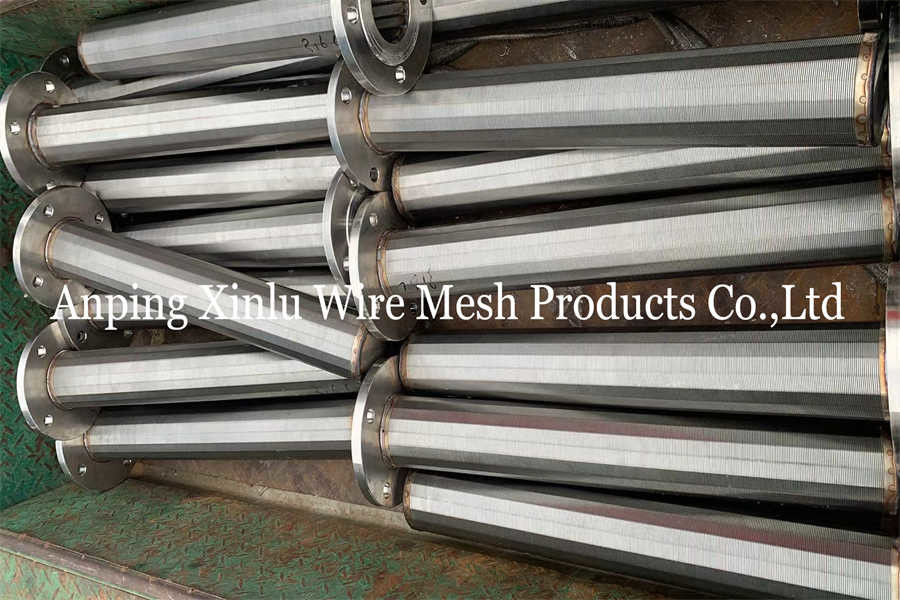

SS 316L Johnson Wedge Wire Lateral Pipe Assemblies DN32 219mm 1

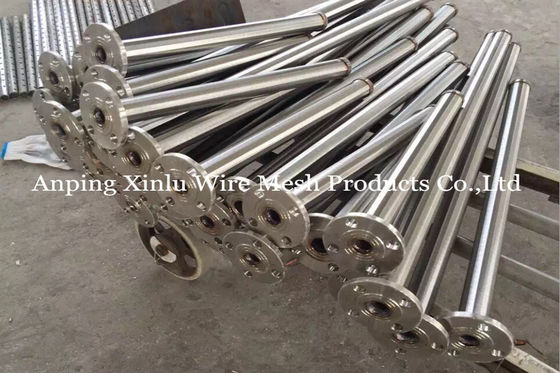

Because of the different ending of wedge wire screen lateral, the connection type is different. Commonly the wedge wire screen laterals are installed onto the vertical hub by threaded. Sometimes, the screen laterals are bolted onto the round hub through flanges on the screen laterals and round hubs.

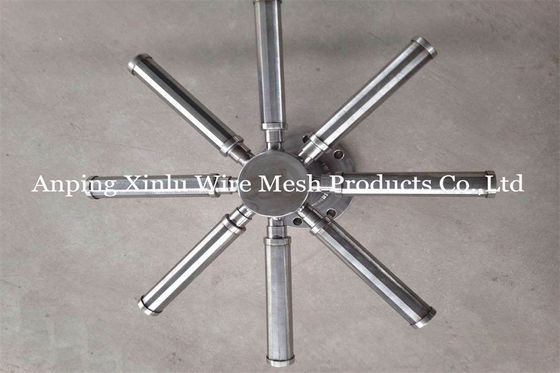

Hub radial lateral is another type of lateral assemblies. It is composed of several screen laterals and a central hub.



Hub radial lateral assemblies have lots of specs, including the slot size, screen lateral lengths, and assemblies diameter. Additional, the number of screen laterals can be customized. All size can be customed.



Johnson Wedge Wire lateral Pipe Specification:

material SS304, SS304L, SS316, SS316L, SS321, 904, C276, 2205, 2207, Duplex, Hastelloy, etc
Normal Lateral Tube QTY (PCS) 4, 6, 8, 12,16, etc. According to request, actual flow rating, and application.
Lateral OD Range (mm) 25 to 80mm, customized
Normal Hub (mm) 108, 133, 219, Customized
Hub and lateral connector types Thread, Flange
Diameter Range(mm) According to the tank diameter. (Usually 200mm shorter than tank diameter)
Slot Range(mm) Normal slot 0.2, 0.25, 0.3, 0.35, 0.4mm.Slot according to request.
Wedge Wire(mm) 1x2 1.5x2 2x3
Support Rod (mm) 1.5x2.5,2x3 1.8x2.5,2x3 2x3,2x4
Note Customized According To Requirement



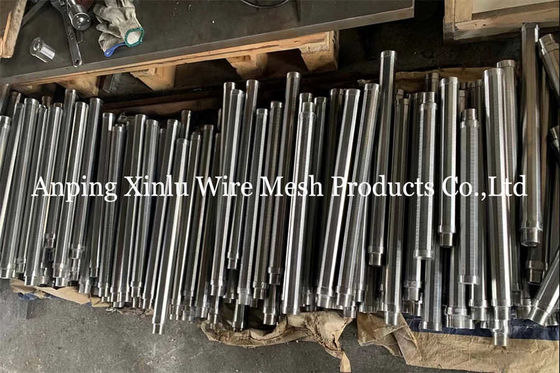

SS 316L Johnson Wedge Wire Lateral Pipe Assemblies DN32 219mm 2

The application of Johnson Wedge Wire lateral Pipe Assemblies:
Wedge wire lateral assemblies are widely used in under draining applications for filtering and screening, additional, it is widely used in various machines for screening.
Under draining filtration
Ion exchanger
Cation exchanger
Mixed bed exchanger



FAQ



Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.



Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.



Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.



Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.



Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
