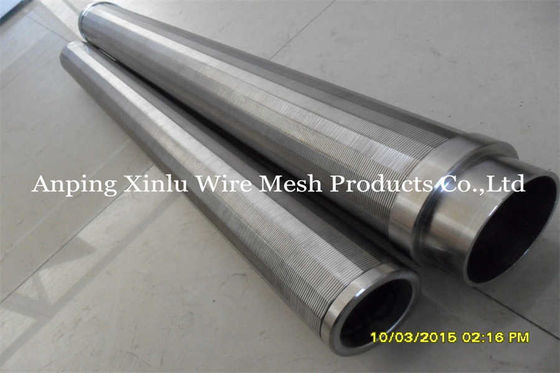

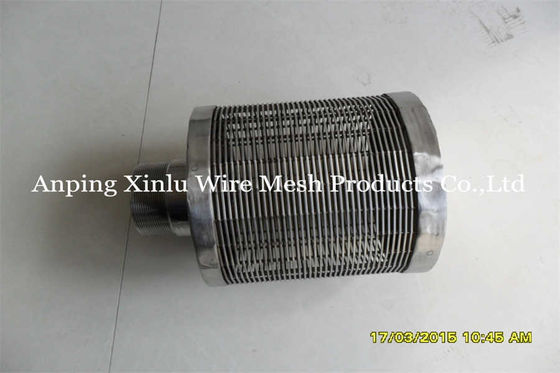

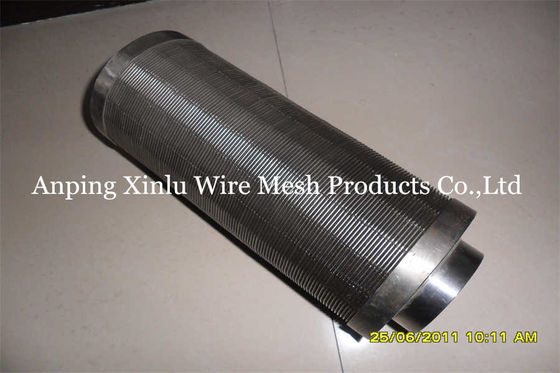

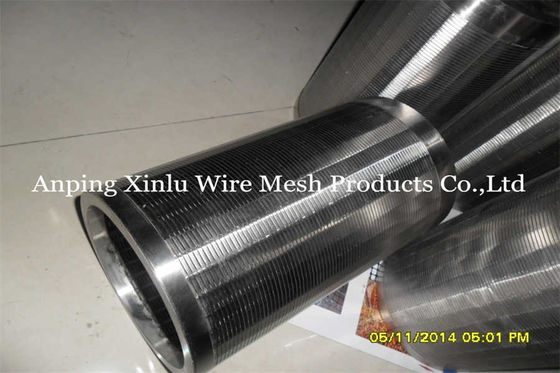

73mm Duplex Stainless Steel Filter Screen Water Header Laterals Distributor Tube Large Flow Rating

73mm Duplex Stainless Steel Water Header Laterals Distributor Tube Large Flow Rating

Wedge Wire Lateral Arms, Stainless Steel filter Candle, Lateral Pipe, Header Laterals, Lateral Tube, Filter tube, Screen pipe, Screen tube, johnson wire lateral screen

The Large flow rating wedge wire water header laterals distributor is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.

Header Lateral Distributor tube Type:

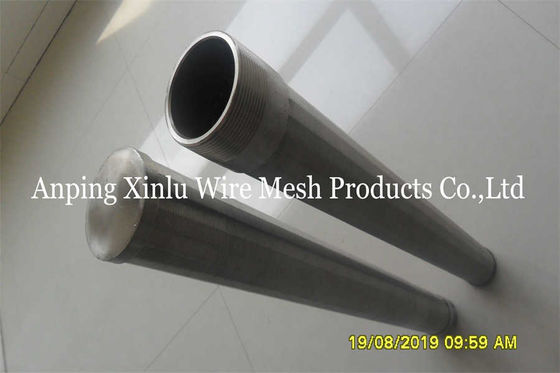

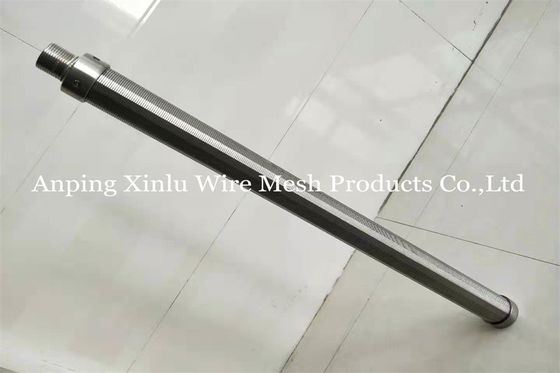

01: Threaded ending wedge wire screen lateral.
02: lange ending wedge wire screen lateral.
03: Threaded connection wedge wire lateral assembly.
04: Flange connection wedge wire lateral assembly.
05: Top flange connection wedge wire assemblies.
06: Bottom flange connection wedge wire assemblies.
07: Threaded connection type hub radial lateral assembly.
08: Flange connection type hub radial lateral assembly.
09: Four branches hub radial lateral assembly.
10: Six branches hub radial lateral assembly.
11: Six branches hub radial lateral assemblies.
12: Eight branches hub radial lateral assembly.

Description of Large flow rating wedge wire water header laterals distributor:

The Large flow rating wedge wire water header laterals distributor is easy to penetrate, having good wear-resisting and corrosion resistance. With Trapezoidal cross-section, even gap, stable welding quality, large opening area, long lifetime, high strength and high load capacity, it can be made into various shapes. The dimensions, wire diameter, slot, and frame structure can be customized.

Advantage of the Large flow rating wedge wire water header laterals distributor

1. Uniform slot, no leakage of resin or material
2. High opening area, high flow area which can meet large flow requirement
3. Large liquid distribution area and uniform distribution
4. The diversified structure which can meet the requirements of the container
5. High-pressure tolerance of branch pipe
6. The high-quality material ensures a longer life

Application of Large flow rating wedge wire water header laterals distributor

The Large flow rating wedge wire water header laterals distributor consist of a series of screen laterals connected to either a central-header pipe or a hub, they are important components of ion exchange units, media filters, sand filters, carbon strip vessels, carbon towers, clay filters and in many water and waster water treatment applications.

Specifications of Large flow rating wedge wire water header laterals distributor:

• Material: stainless steel, hastelloy steel or other alloy steel.
• Assemblies end type: threaded type or flange type.
• Slot size: 0.05 mm, 0.1 mm, 0.2 mm, 0.3 mm, 0.5 mm, 1 mm.
• Screen lateral diameter: 32 mm, 40 mm, 70 mm, 76 mm, 89 mm.
• Vertical hub diameter: 76 mm, 89 mm, 108 mm, 133 mm, 159 mm, 219 mm.

Features of wedge wire lateral assemblies

Wedge wire lateral assemblies can suit different applications for different use

• High open area.
• High filtering and screening performance.
• Various ending types.
• Temperature resistance.
• Corrosion and rust resistance.
• Non-clogging.
• Easy to install and replace.
• Low maintenance cost.
• Durable and long service life.
• Suit different application.
•

Application of wedge wire lateral assemblies

Wedge wire lateral assemblies is widely used in under draining applications for filtering and screening, additional, it is widely used in various machines for screening.

• Cation exchanger.
• Mixed bed exchanger.
• Ion exchanger.

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: 3-5 days for Sample preparing , 15-25 working days for mass production.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 3pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Airline, sea shipping and rail transportation are all optional.

Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.

Q5. How to proceed an order?

A: Firstly let us know your need specification or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production.
