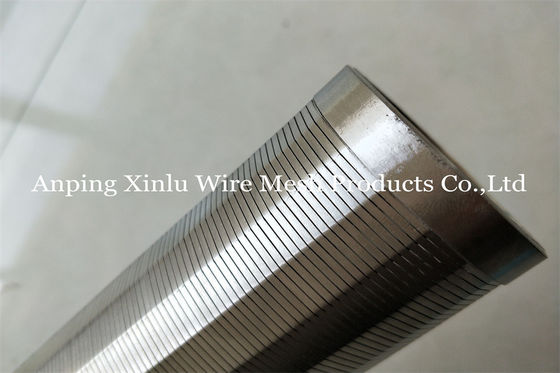

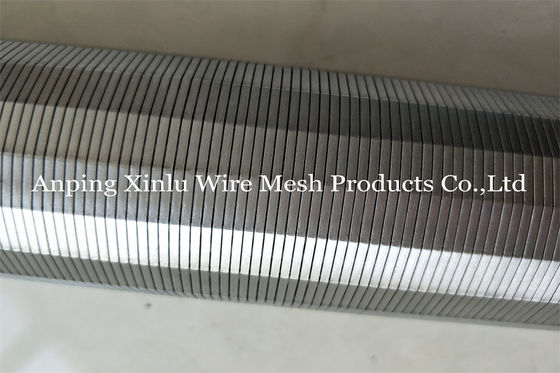

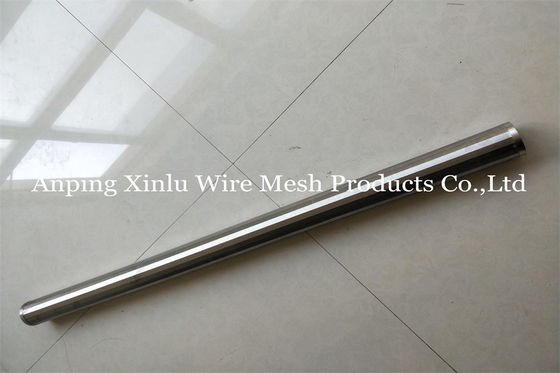

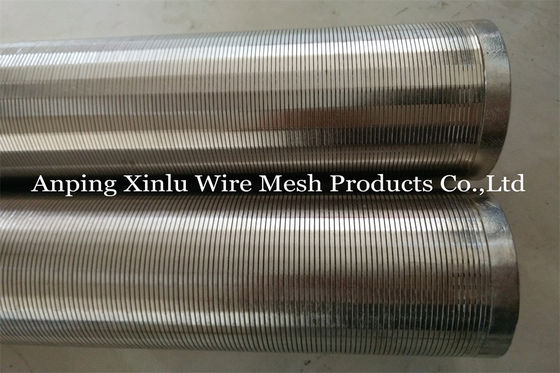

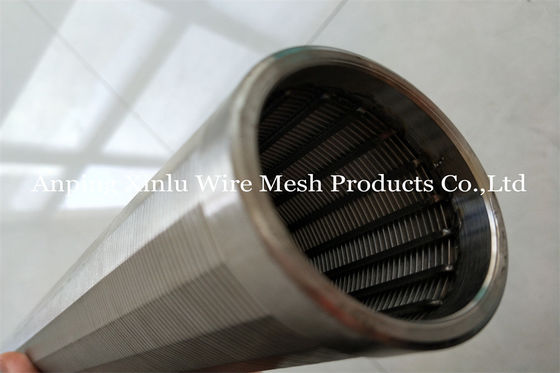

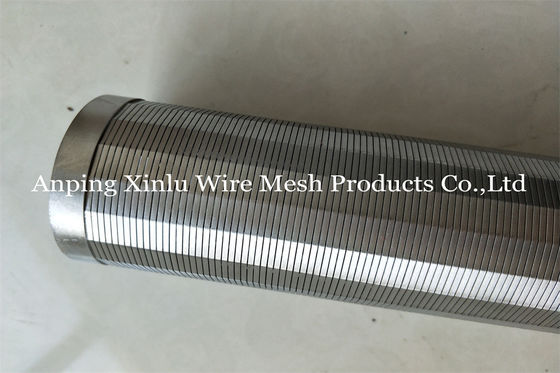

Johnson Type Stainless Steel Wedge Wire Slotted Filter Element Cylindrical Screen
Johnson type stainless steel wedge wire filter screen are made of support profiles wrapped with a variety of wedge wires. The v-shaped structure of it can achieve a large open area and excellent backwash ability. Its special designs work with filtration direction from inside to outside or on the contrary.
Your Specialist & Reliable Manufacturer and Supplier of Wedge Wire Filter Screens.
Benefits : Johnson Type Stainless Steel Wedge Wire Slotted Filter Element Cylindrical Screen
V type wire, no plugged
No moving part, simple to install
Low maintenance costs
Economical and applicable type, long life
Application:
The johnson wedge wire filter screen pipe is mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter, and other filtration equipment.
Stainless Steel Water well steel slotted Johnson screen pipe Specifications:
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Package of Johnson Type Stainless Steel Wedge Wire Slotted Filter Element Cylindrical Screen:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
