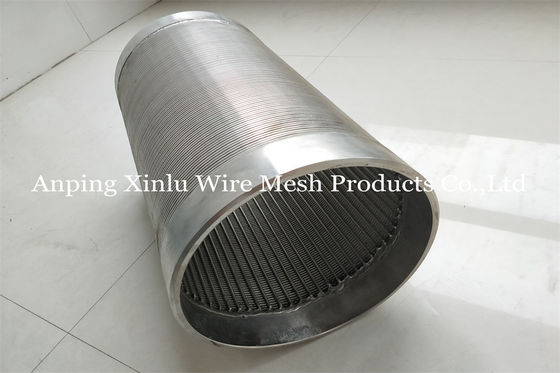

12" Stainless Steel Johnson Wire Filter Screen For Water Well Application
stainless steel vee sharped wire / wrap wire, johnson screeen, water well screen / rod based wire wrapped screen, wedge wire screen, reverse wedge wire screen, stainess steel strainer pipe, v wire slot tube, perfect roundness well screen pipe, dewatering well screen, dewatering screen panel, wedge wire grating, v wire flat panel, screen nozzle, water and gas strainer nozzle, stainless steel filter nozzle, wedge wire support grids, sieve bend plate, v wire screens, ARC screen, filter bottom nozzle, stainless steel lateral screens, wedge wire filter candles, Rotary drum screens, strainer cylinder, sand control well screen, oil well screen, rod basedc ontinuous slot screens, header and hub laterals & hub radial laterals etc.
Wedge Wire Screens is also called Johnson type Screen. It's a sieve made from looped wires formed into a deep wedge-shaped section. They are characterized by precision workmanship and gap size, extended life span, capability of self-cleaning and low pressure drop.
Smooth surface is for filtering, the gap is strip, belonging to the form of surface filtration. As a multiform of automatic filters ( such as automatic back washing, scraper self-cleaning, scraping disc self-cleaning, sucking self-cleaning filter) are widely used in various industries of fluid filtration.
1. Material: SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
2. External diameter: 25--300mm
3. Standard: Non-standard, OEM, ODM
| OD Range |
19mm-2000mm |
| Length Range |
Up to 6000 mm |
| Slot Range |
20 micron to 3000 micron (Tolerance:+-5 micron) |
| Wedge Wire |
0.5x1.5 |
0.75x1.5 |
1x2 |
1.5x2 |
2x3 |
2x4 |
3x5 |
| Support Rod |
1.5x2.5
2x3
|
1.5x2.5
2x3
|
1.5x2.5
2x3
|
1.8x2.5
2x3
|
2x3 2x4 3x5 3x6
3x10 4x7
|
2x4 3x5 3x6 3x10 4x7 5x6
|
3x5 3x6 3x10 4x7 5x6 5x8
|
| End Finishing |
Flange, Metal Ring, Cross Connector, closed, etc |
Application of SS Wedge Wire Filter Pipe
The SS Wedge Wire Filter Pipes are mainly used for the water-treatment, water well drilling, oil well drilling, mineral processing, coal-cleaning plant, sewage treatment and other industries, water, oil or gas filter, and other filtration equipment.
SS Wedge Wire Filter Pipe for water well
Benefits:
Easy cleaning surface
High percentage open area
Minimal clogging and maximum water flow
Strong construction
Can be designed and customized according to working conditions.
Noted: Specifications Can Be Customized According To Requirement
Stainless Steel Continuous Slot Wedge WireJohnson Water Well Filter Screen Tube Specifications:
sizes
(inch) |
OD
(mm) |
slot
(mm) |
Length
(m) |
Tenslile
strength |
collapse
Strength |
wrap wire
vee-shaped wire
(Width x height:mm)
|
support rod
Round wire (mm) |
| 3-1/2 |
88.9 |
1 |
2.9 |
>22 |
10.2 |
2.3 x 3.5 |
3.0MMx22 |
| 4-1/2 |
114.3 |
1 |
2.9 |
>28 |
11.5 |
2.3 x 3.5 |
3.0MM×22 |
| 6-5/8 |
168.3 |
0.75 |
5.8 |
>40 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
1 |
5.8 |
>33 |
12.8 |
2.3 x 3.5 |
3.8MM×32 |
| 6-5/8 |
168.3 |
0.63 |
5.8 |
>83 |
45 |
3.0 x 6.0 |
5.OMM×32 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>34 |
21.9 |
2.3 x 3.5 |
3.8MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>50 |
38.2 |
3.0 x 4.6 |
4.0MMx48 |
| 8-5/8 |
219.1 |
1 |
5.8 |
>60 |
46 |
3.05 x 6.35 |
5.0MMx48 |
| 10-3/4 |
273.1 |
0.75 |
5.8 |
>50 |
9 |
2.5 x 4 .0 |
3.8MM×55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>60 |
39.5 |
3.0 x 4.6 |
4.5MMx55 |
| 10-3/4 |
273.1 |
1 |
5.8 |
>100 |
48 |
3.2 x 6.0 |
5.0MM×55 |
| 12-3/4 |
323.9 |
1 |
5.8 |
>120 |
37.2 |
3.0 x 6.0 |
4.0MMx56 |
| 14 |
355.6 |
1 |
2.9 |
>80 |
37.8 |
3.0 x 5.0 |
4.0MMx59 |
| 16 |
426 |
1 |
2.9 |
>80 |
37.5 |
3.0 x 5.0 |
4.OMM×64 |
| PROFILE WIRE |
|
|
|
|
|
|
|
|
| WIDTH(mm) |
1.00 |
1.50 |
1.50 |
2.00 |
2.30 |
2.50 |
3.00 |
3.05 |
| HEIGHT(mm) |
2.00 |
2.00 |
2.50 |
3.80 |
3.50 |
4.00 |
4.60 |
6.35 |
| SUPPORT ROD |
|
|
|
|
|
ROUND |
| WIDTH(mm) |
1.80 |
2.00 |
2.50 |
3.00 |
3.00 |
Ø2.5--Ø6mm |
| HEIGHT(mm) |
2.50 |
3.00 |
4.00 |
4.60 |
6.00 |
---- |
Package of wedge wire filter screens:
Plastic bubble bag packaging
Transparent plastic bag inside, woven bag outside
Wooden box
Pallet
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing , 15-25 working days for mass production.
Q3. Do you have any MOQ limit for the order?
A: Low MOQ, 3pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Airline, sea shipping and rail transportation are all optional.
Or ship by EMS, DHL, UPS, FedEx or TNT, it takes 5-7 days to arrive.
Q5. How to proceed an order?
A: Firstly let us know your need specification or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production.
