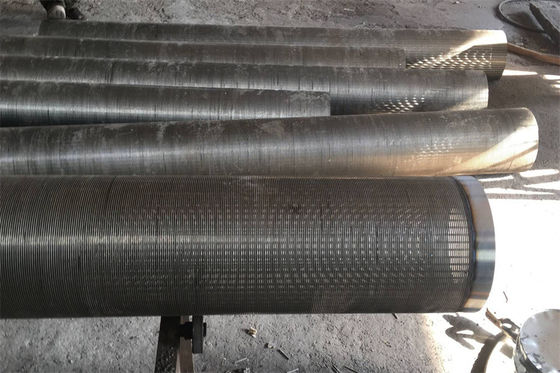

Stainless Steel 316L 10-3/4" Johnson Vee Wire Water Well Filter Screen
Product Description:
Vee Wire Water Well Filter Screen, also called Water Well Screens, Johnson Vee wire well screens, are made of V or wedge shaped wires around an internal array of longitudinal support rods. It is designed to serve as the intake portion of wells constructed in unconsolidated or semi-consolidated aquifers. This design supplies a continuous slot openings, which allows water to enter the well freely in ample quantities and keeps the majority of sand and gravels out of the well at the same time.
Our technical staff includes expert design engineers, welders, technical support personnel, and sales engineers who are familiar with all aspects of manufacturing and deployment of downhole screens for different applications.
Johnson Vee Wire Water Filter Screen Advantages:
Non-clogging capabilities
Self supporting
High abreaction resistance
Low pressure drop
Large open area
Better sand filtration
Energy saving
Lowest possible cost
Long using life
Maximum flow capacity
Specifications:
Diameter: 16mm to 915mm
Slot: from 10micro to 10mm
Length: as request, maximum 6m
Material: Stainless steel
Flow direction: From Out To In and From in to out
To meet the most demanding requests, Xinlu continues to engineer and manufacture stainless steel screens, we have more than doubled our manufacturing capacity by adding new equipment and expanding our factories.
Technical Parameters:
| Parameter |
Value |
| Name |
Stainless Steel Water Well Screen, Stainless Steel Johnson Filter Screen |
| Filter Type |
Screen Pipe, Screen Tube, Screen Nozzle, Screen Plate, Screen Panel, Screen Basket, Screen Laterial Arm Pipe, Screen Candle |
| Material |
Stainless Steel 201 No Magnetic, 304, 304L, 316L, 321, Duplex Stainless Steel 2205 |
| Mesh Size |
4-400mesh |
| Aperture Size |
0.010", 0.020", 0.030", 0.040", Or Customized |
| Surface Treatment |
Electrolytic Polishing Or Polishing Or Pickling Polished |
| Length |
10ft / 20ft, Or Customized |
| End Joint |
Welding Ring, Thread Joint, Flange |
| Package |
Inside Transparent Plastic Bag, Outside Woven Bag Or Bubble Bag, Wooden Case, Pallet Or Container |
| Application |
Water Well, Water Treatment, Sand Control, Mining, Food Processing, Chemical Industry, Filtration, Separation, Sieving And Screening, Etc. |
